Emporia Classic Level 2 Smart EV Charger

High-Speed Home Electric Vehicle Supply Equipment, PowerSmart Demand Management Energy Eco-System, Rugged Indoor/Outdoor Weatherproof EVSE Charging Station

Bring fast Level 2 electric vehicle refueling, smart load management, and award-winning reliability directly to your home garage or outdoor driveway with the Emporia Classic Level 2 Smart EV Charger. Consistently named one of the absolute best home EVSE stations on the market by leading automotive and lifestyle publications, the Emporia Classic updates standard home vehicle charging into an intelligent residential utility hub. By delivering a powerful 240V AC current stream, it replenishes your EV battery pack up to 9x faster than standard Level 1 factory wall outlets.

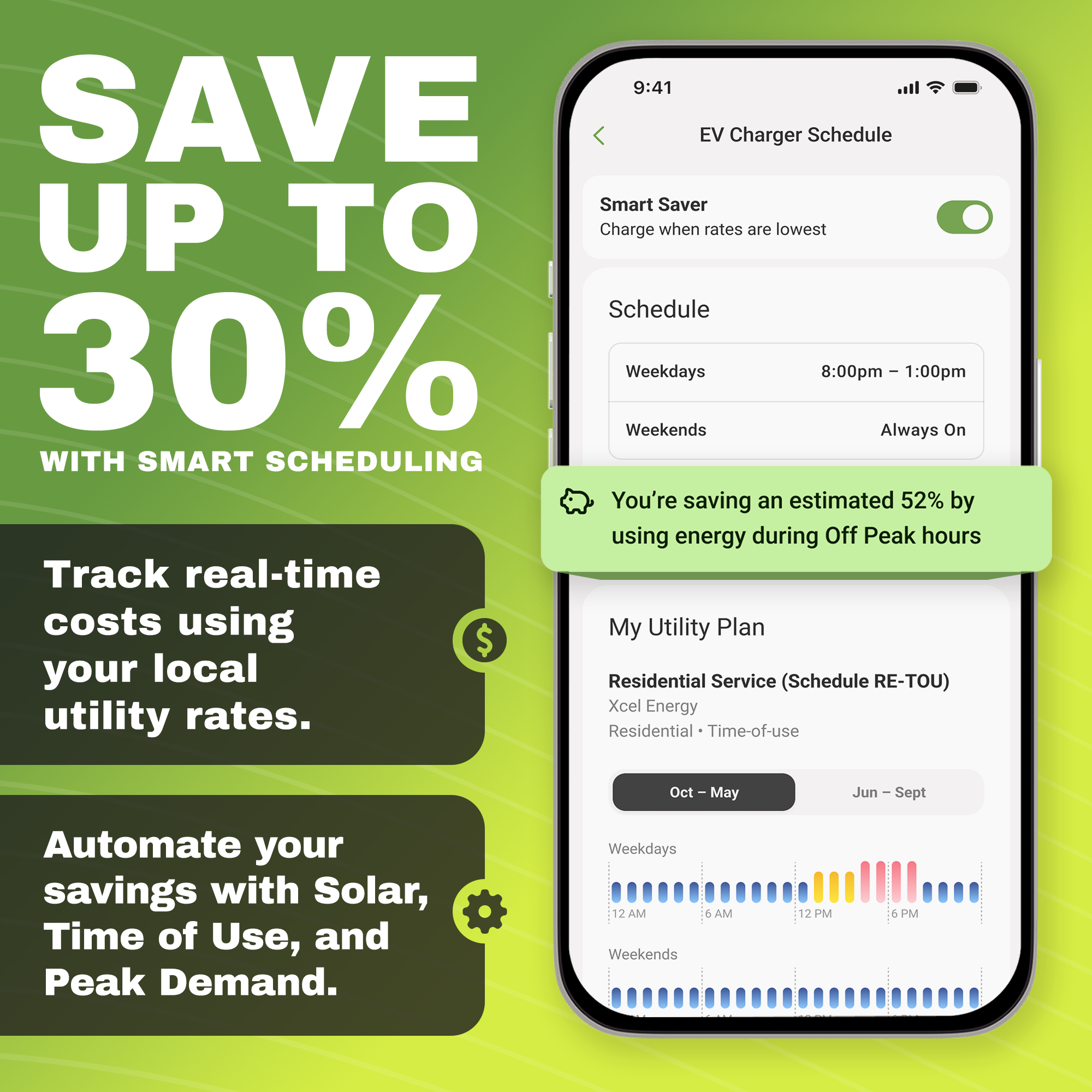

This specific configuration features a factory-attached, high-duty NEMA 14-50 power plug for immediate, portable deployment into any standard 50-amp 240-volt RV-style wall outlet, as well as a universal SAE J1772 connector gun. The defining advancement of this smart charger is its seamless integration into the Emporia PowerSmart Eco-System. Through an intuitive smartphone app connected via 2.4GHz WiFi, you can dynamically schedule charging sessions to capture off-peak utility rates, monitor real-time energy usage in dollars and cents, and balance your electrical panel load to prevent accidental circuit breaker trips.

Key Product Features & Core Engineering

• High-Speed Level 2 Refueling: Outputs a clean, consistent 40-amp current over 240V AC lines, generating approximately 9.6 kW of power to add up to 38 miles of range per hour.

• Plug-and-Play NEMA 14-50 Setup: Preconfigured with a heavy-duty NEMA 14-50 power cable for swift, tool-free installation into an existing matching 240V high-voltage wall outlet.

• Universal J1772 Connector Gun: Outfitted with the universal North American J1772 connector plug, natively compatible with major non-Tesla EVs and plug-in hybrids (and handles Tesla vehicles with a simple NACS adapter).

• PowerSmart Energy Management: Integrates with optional Vue Home Energy Monitors to dynamically adjust charging metrics based on household demand or excess solar array generation.

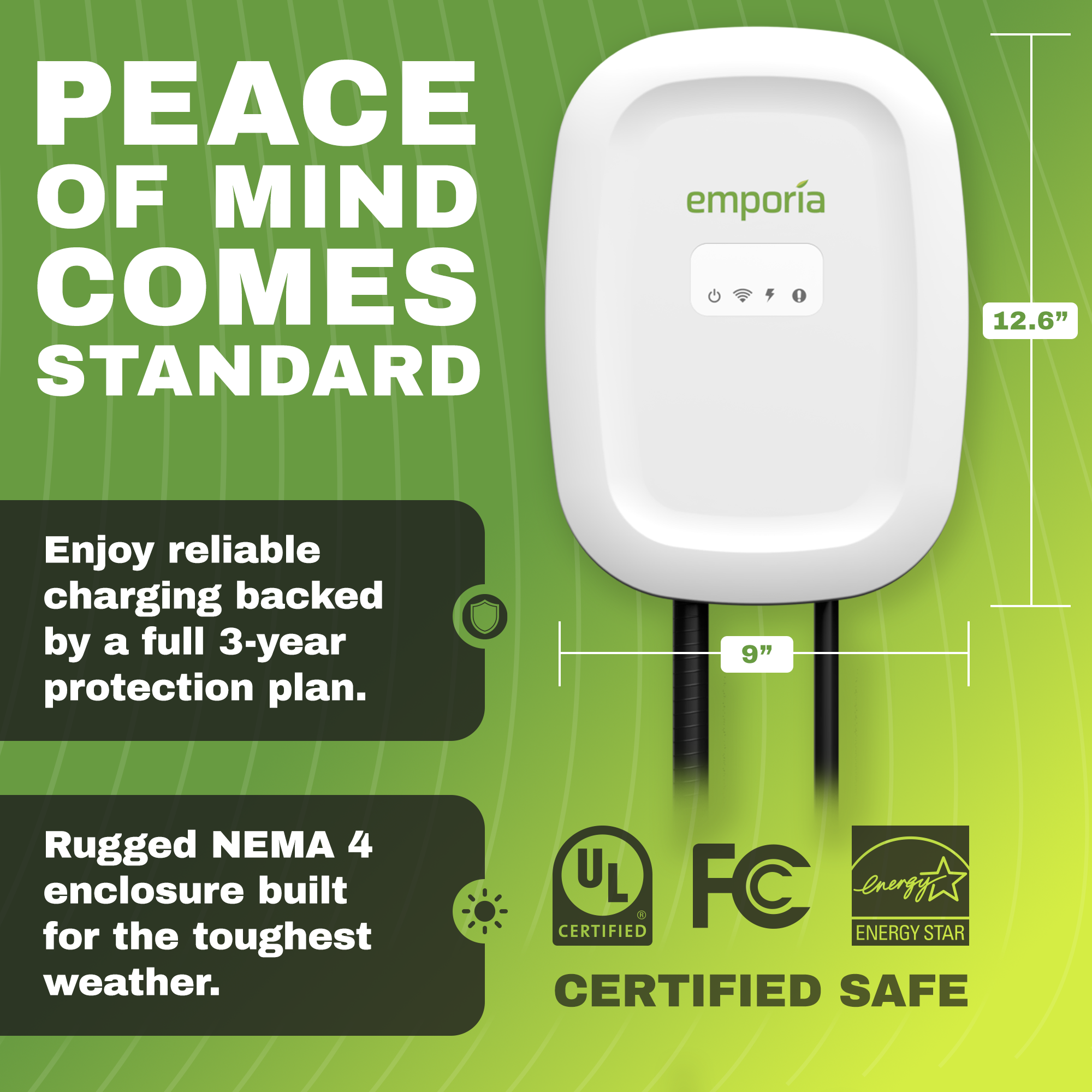

• Watertight NEMA Type 4 Enclosure: Bound within an exceptionally rugged, dust-tight, and waterproof white chassis certified for flawless long-term operation in both indoor garages and exposed outdoor driveways.

• Premium Long-Reach Charge Cable: Equipped with a thick, heavy-duty, ultra-flexible 25-foot charging cable that easily reaches across dual-car parking stalls.

Technical Specifications Summary

Comprehensive Product Packaging List

• 1 × Emporia Classic Level 2 Smart EV Charger Station Main Body (White Enclosure)

• 1 × Heavy-Duty 25-Foot Integrated J1772 Vehicle Charging Cable Assembly

• 1 × Factory-Attached 24-Inch Power Supply Cable with NEMA 14-50 Plug

• 1 × Premium Wall-Mount Charger Docking Holster and Cord Management Cradle

• 1 × Heavy-Duty Wall Mounting Bracket and Anchor Screw Fastener Pack

• 1 × Master Quick-Start Installation Blueprint, User Manual, and Mobile App Link

Critical Field Installation & Operational Guidelines

• Continuous Load Outlet Requirements: Not all NEMA 14-50 outlets are engineered to handle the continuous thermal load of nightly EV charging. Ensure your wall outlet is an industrial-grade, continuous-duty rated model (such as Hubbell, Bryant, or Leviton industrial series) rather than a cheap residential range outlet to prevent localized overheating.

• Hardwired Amperage Optimization: While the NEMA plug configuration limits your output to 40 amps to comply with safety codes on a 50A breaker, this charger can be modified. A licensed electrician can remove the plug tail and hardwire the unit into a dedicated 60A breaker to unlock the full 48-amp (11.5 kW) maximum charging speed.

• WiFi Signal Strength Verification: Because the intelligent PowerSmart scheduling, time-of-use utility tracking, and automated cost calculations rely completely on cloud balancing, ensure your preferred mounting location receives a steady 2.4GHz WiFi signal before securing the chassis to the wall.
