BLUETTI 2 × APEX 300 + 2 × B300K + Hub A1 Parallel Combo

High-Capacity Home Backup & Workshop Infrastructure, 11,059.2Wh Massive Multi-Module Battery Bank, 7,680W High-Output Pure Sine Wave Heavy-Duty Energy Ecosystem

Establish a massive, heavy-duty industrial or whole-home energy footprint with the BLUETTI 2 × APEX 300 + 2 × B300K + Hub A1 Parallel Combo. Designed as an ultra-scalable backup solution, this comprehensive package links two advanced modular power stations and two massive deep-cycle expansion batteries into a single, unified power grid. Delivering a staggering 11,059.2Wh of combined storage capacity straight out of the box, this high-performance system supplies structural energy independence to run power-hungry home HVAC networks, workshops, emergency centers, and heavy electronic arrays simultaneously.

The secret behind this extreme capability is the included BLUETTI Hub A1 Parallel Box. Rather than running separate power stations independently, the Hub A1 hard-links both internal inverters to deliver up to 7,680W of continuous pure sine wave AC current (with a massive short-term surge overhead up to 15,360W). Utilizing premium, EV-grade Lithium Iron Phosphate (LiFePO4) battery cells and an automated EnerBalance AI manager, the system safely processes over 6,000 full power cycles, translating to over 17 years of daily service. Featuring a seamless 0ms UPS switchover time, your critical data racks, internet networks, medical devices, and large home appliances stay running through grid failure without a single flicker.

Key Product Features & Core Engineering

• Hub A1 High-Output Parallel Scaling: Links two master power units to combine output capacity, allowing you to run heavy-duty workshop machinery or central air systems with ease.

• Massive 11kWh Deep-Cycle Storage: Combines dual base stations and expansion batteries into an expansive 11,059.2Wh energy vault that can grow up to 58kWh.

• Simultaneous 120V & 240V Native Delivery: Provides flexible high-amperage split-phase outputs directly through unified power hubs, eliminating the need for external phase transformers.

• 0ms High-Speed UPS System: Ultra-fast automatic backup instantly safeguards digital networks, server hubs, and critical home systems from sudden power blackouts.

• Smart AI-Driven Peak Load Shifting: Automatically schedules charging via the BLUETTI app to top off cell matrices during cheap off-peak utility hours or through direct solar inputs, significantly dropping monthly utility bills.

• Ruggedized Structural Stacking Frame: Built and shock-vibration tested to rigorous MIL-STD-810G military standards, complete with magnetic-core transformers that lower idle power drain to just 20W.

Technical Specifications Summary

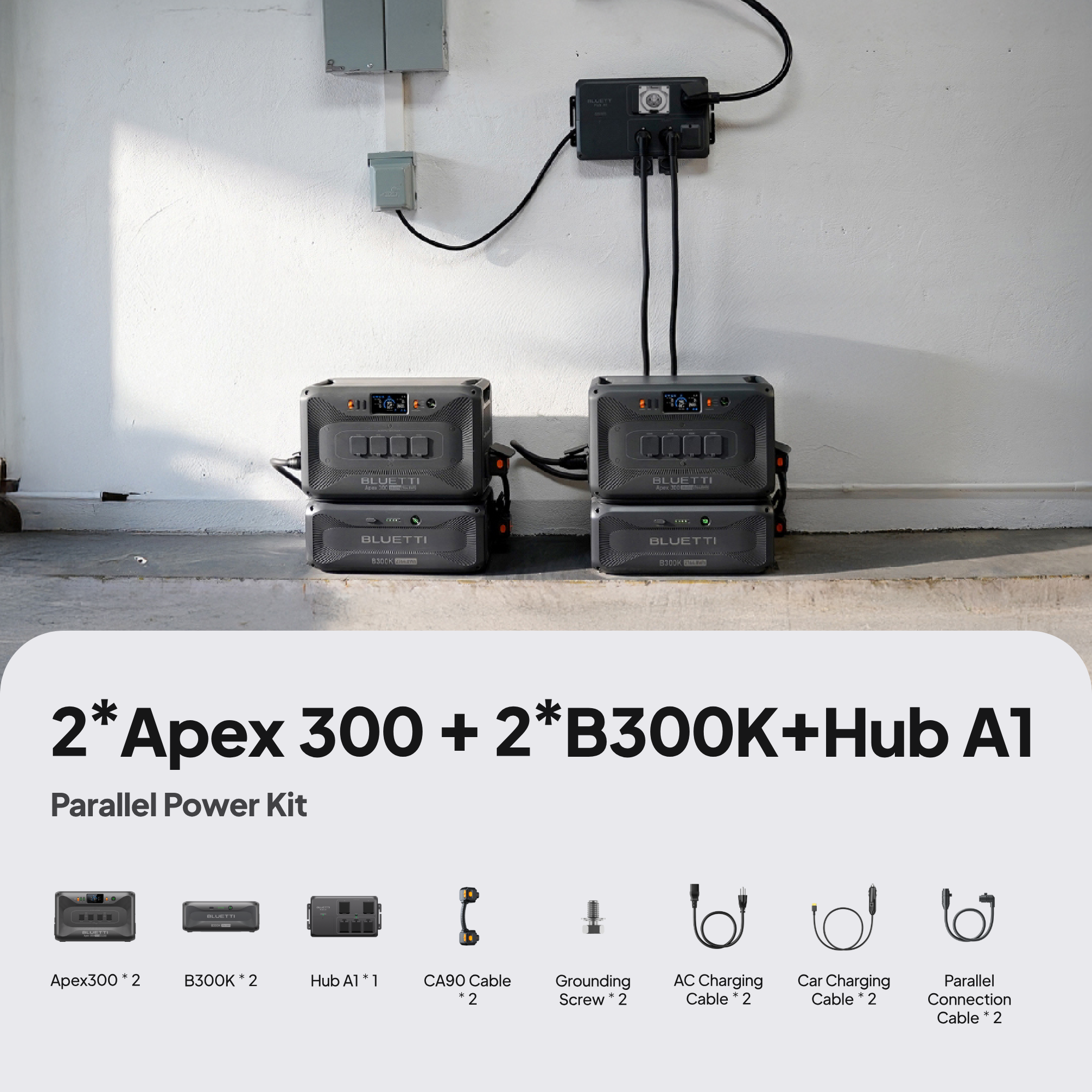

Comprehensive Product Packaging List

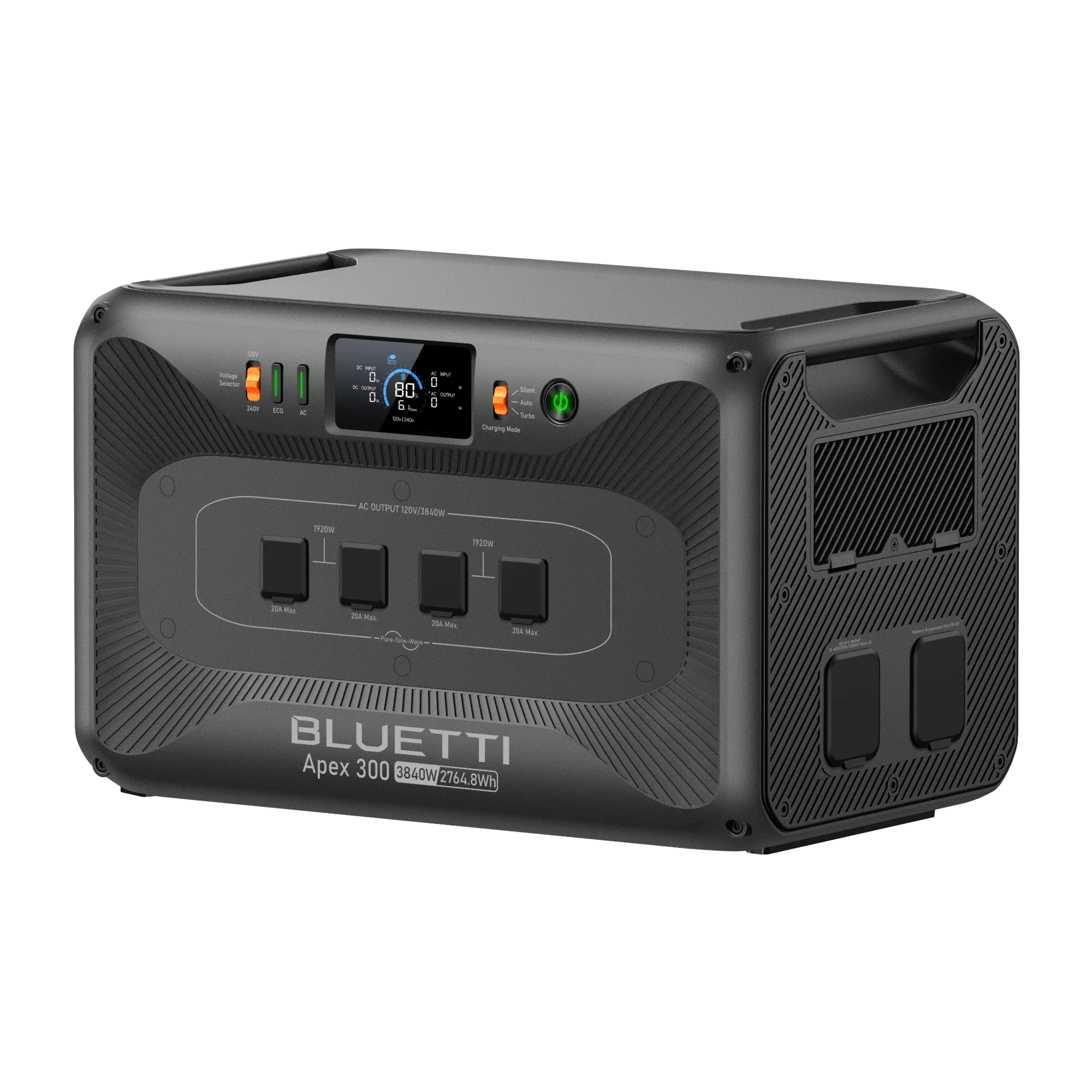

• 2 × BLUETTI APEX 300 Master Modular Power Station Units (2,764.8Wh each)

• 2 × BLUETTI B300K Deep-Cycle Expansion Battery Pack Modules (2,764.8Wh each)

• 1 × BLUETTI Hub A1 Parallel Central Integration Box Assembly

• 2 × Premium P050A High-Current Heavy-Gauge Parallel Connection Cables

• 2 × Heavy-Duty Locking Expansion Battery Interconnect Cables

• 2 × High-Amperage Grounded AC Wall Outlet Recharging Cables

• 2 × Universal Car Cigarette Accessory Socket Charging Adapters

• 1 × Master Parallel System Blueprint, Circuit Schematics, and Operational Manuals

Critical Field Installation & Operational Guidelines

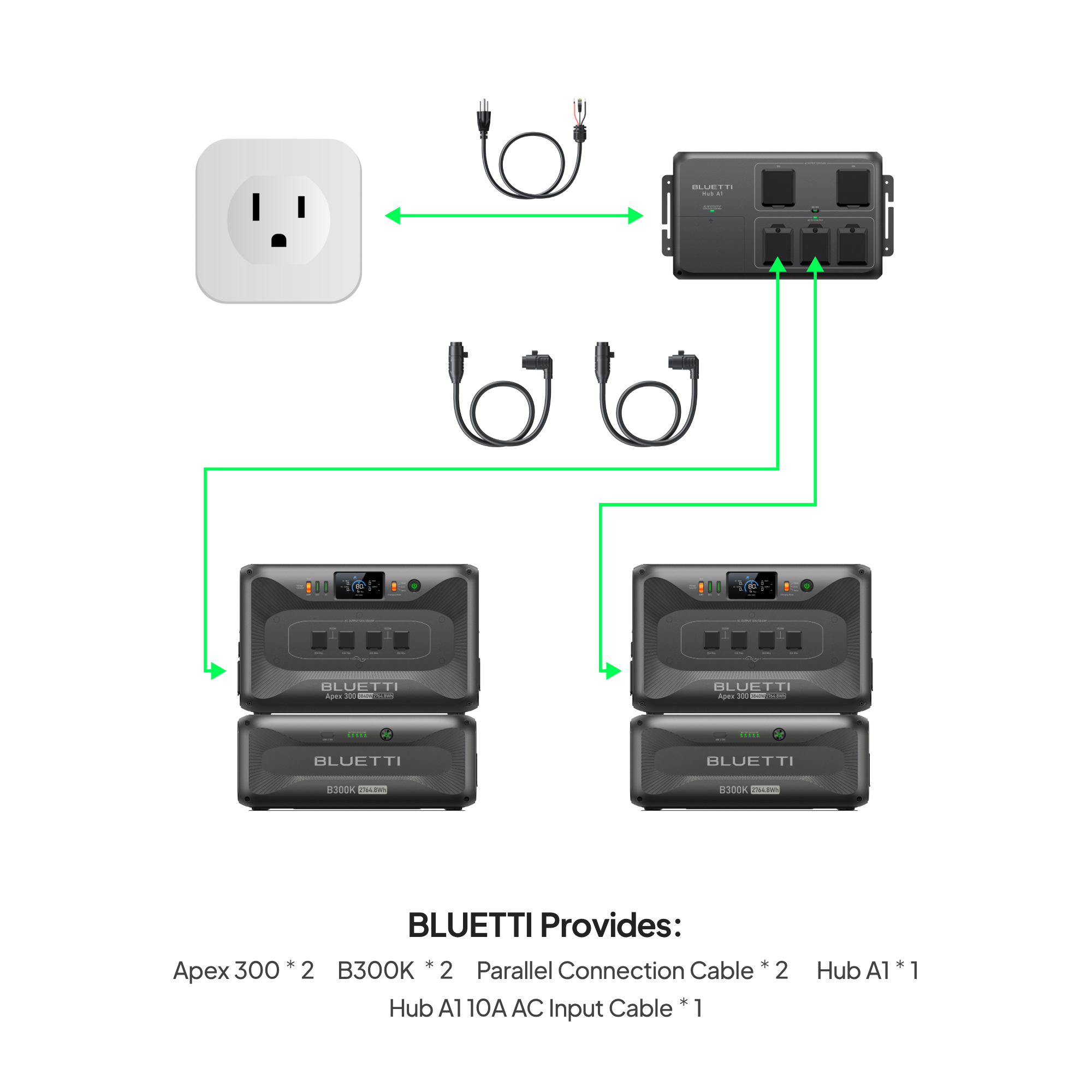

• Parallel Synchronization Power-Up Sequence: When activating the combined system, always map out all structural parallel cable links via the Hub A1 while the stations are completely powered off. Turn on both APEX 300 units simultaneously; the integrated computer chips will automatically communicate and lock output waves to balance loads safely.

• High-Amperage Breaker Alignment: The Hub A1 Parallel Box gives you access to high-current output lines (including dedicated 30A and 50A options). If hooking this master array up into a home transfer switch or panel panel via an inlet box, verify that all external copper lines match local electrical codes for high-amp continuous loads.

• Balanced Dual-Array Storage Ventilation: When setting up your modular array in a stacking pattern, position the units on a dry, level hardscape. Keep a minimum of 10 inches (25 cm) of breathing space around all ventilation fan outlets to allow adequate heat dissipation when running high continuous household loads.
